IIS sites, applications and virtual directories: the four-layer model

Verified 2 min read

Understand site vs application vs virtual directory vs application pool, create a lab site on 8080, and choose the isolation boundary deliberately.

Tested onStandard / Datacenter · Build 26100.33650 · x64
E1
Build
26100.33650
Edition
Standard / Datacenter
Architecture
x64
Support
Documentation (E1)
Evidence
E1Official documentation
Verified
2026-10-29
Test machine
IIS Manager UI reference: VM 361 Windows 11 26H2; Site Lab on :8080; Server 2025 cmdlets E1
Page type
Concept

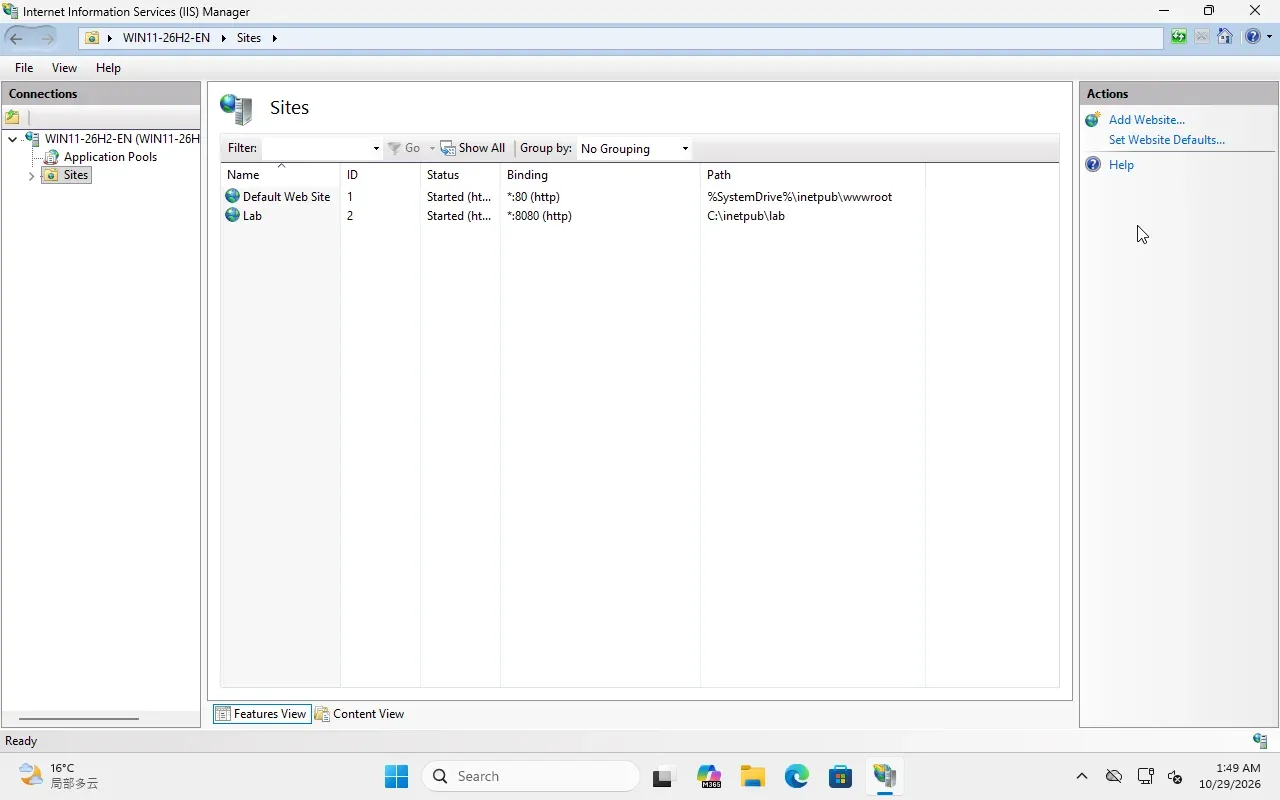

IIS Manager Sites view showing Default Web Site on port 80 and a Lab site on port 8080.
IIS Manager Sites on VM 361: Default Web Site (:80) and Lab (:8080). Windows 11 UI reference; Server 2025 role steps are E1. Click to open full size.

The short answer

Section titled “The short answer”

Four different things:

Object What it is Own binding? Own app pool?
Site A web endpoint: binding + root + app pool Yes Yes
Application A path segment inside a site (e.g. /shop) No (inherits site binding) Yes
Virtual directory A folder mapped to a URL path No No
Application pool The worker-process boundary No —

Use a site for a different hostname/port. Use an application for a separate app under the same host. Use a virtual directory only for static content that does not need its own process.

The lab site

Section titled “The lab site”

IIS Manager on VM 361 shows:

  • Default Web Site, id 1, http/*:80:
  • Lab, id 2, http/*:8080:, root C:\inetpub\lab, app pool labpool

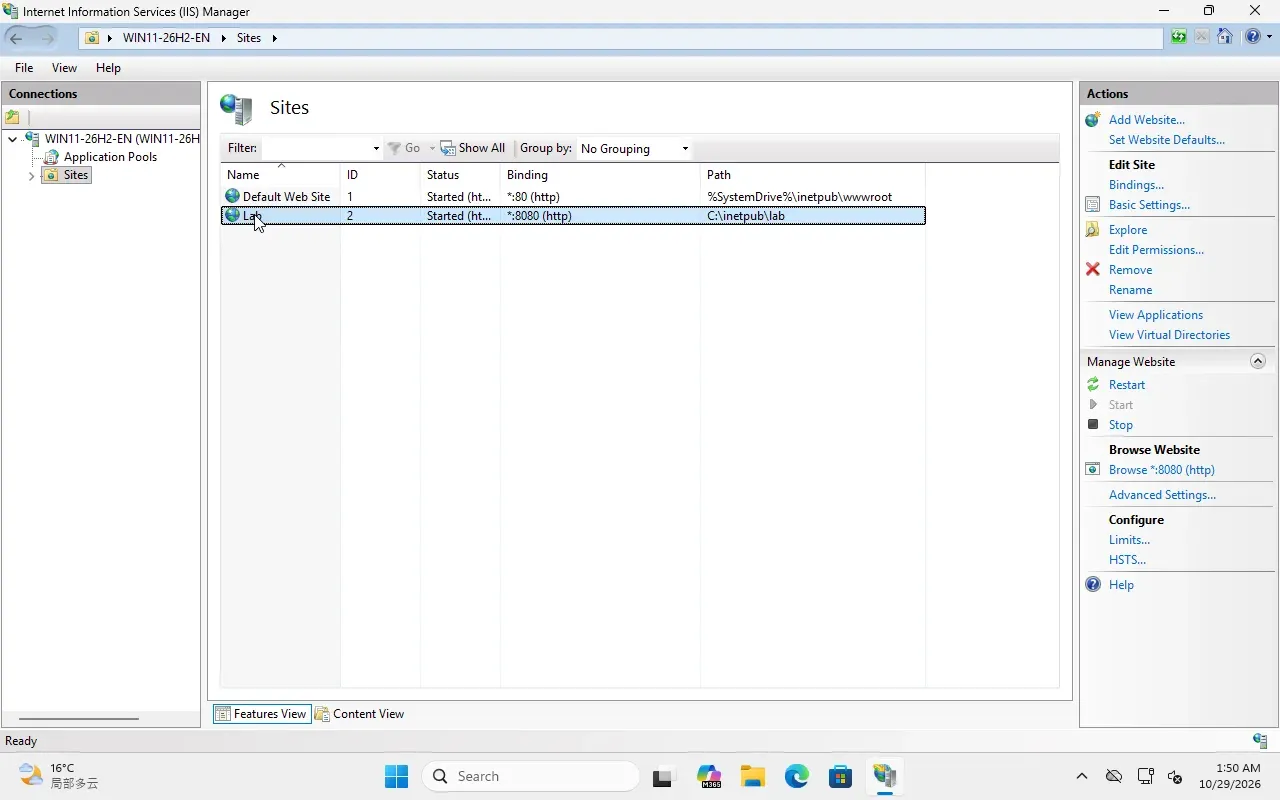

IIS Manager Lab site selected, showing the binding on port 8080 and the actions pane.
The Lab site selected: binding 8080, path C:\inetpub\lab, app pool assigned. Captured on Windows 11 26H2.

Create it with PowerShell (WebAdministration module):

Terminal window
Import-Module WebAdministration
New-Item -ItemType Directory -Force C:\inetpub\lab | Out-Null
New-WebAppPool -Name 'labpool'
New-WebSite -Name 'Lab' -PhysicalPath 'C:\inetpub\lab' -Port 8080 -ApplicationPool 'labpool'

Or with appcmd:

Terminal window
appcmd add apppool /name:labpool /managedRuntimeVersion:""
appcmd add site /name:Lab /physicalPath:C:\inetpub\lab /bindings:"http/*:8080:"
appcmd set app "Lab/" /applicationPool:labpool

managedRuntimeVersion:"" means No Managed Code — correct for a static site or a reverse-proxied Node/Python app. Do not leave it on v4.0 unless the app needs .NET Framework.

Add an application

Section titled “Add an application”
Terminal window
New-WebApplication -Site 'Lab' -Name 'shop' -PhysicalPath 'C:\apps\shop' -ApplicationPool 'shoppool'

This creates http://host:8080/shop with its own app pool. The parent site’s web.config still applies unless the child overrides it. That inheritance is useful, and a common source of “it works at the root but not under /shop” bugs.

Add a virtual directory

Section titled “Add a virtual directory”
Terminal window
New-WebVirtualDirectory -Site 'Lab' -Name 'docs' -PhysicalPath 'D:\StaticDocs'

/docs maps to a folder but uses the parent application’s app pool. It is not an isolation boundary.

Verify

Section titled “Verify”
Terminal window
Get-Website | Select-Object Name, State, PhysicalPath, ApplicationPool
Get-WebApplication -Site 'Lab'
Get-WebVirtualDirectory -Site 'Lab'
Invoke-WebRequest http://localhost:8080/ -UseBasicParsing | Select-Object StatusCode

Then check from another machine on the allowed network; a localhost-only test does not prove the firewall/binding is correct.

Common traps

Section titled “Common traps”
  • Binding conflict: two sites on the same IP:port with no host header/SNI. IIS starts one and fails the other.
  • Wrong app pool: static site on DefaultAppPool with .NET loaded; unnecessary surface.
  • Virtual directory permissions: the app pool identity needs NTFS read on the target folder, not just IIS “connect as”.
  • Nested config: a parent web.config can block a child app; read the 500.19 error instead of deleting config.
  • Default site left running: it may answer requests for an unbound hostname.

Lab boundary

Section titled “Lab boundary”

The UI is Windows 11 26H2. The cmdlets and object model are the same family as Server 2025, but Server-specific role installation remains E1 until a Server 2025 VM reproduces it.
